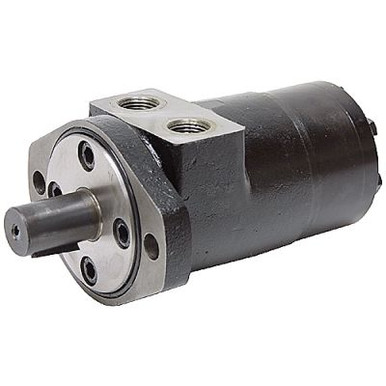

23.61 cu in DYNAMIC BMPH400H2KP HYDRAULIC MOTOR
Brand new. DYNAMIC BMPH series hydraulic motors. Gerotor power element. Interchangeable with the following motor lines: CHAR-LYNN H, DANFOSS DH, WHITE RS, PARKER – ROSS MG/TB.
SPECIFICATIONS
- Brand Dynamic
- Model 61017
- Build Number BMPH-400-H2-K-P
- Family BMPH
- Displacement 23.61 cu. in. / rev.
- Motor Type Gerotor
- Rotation Reversible
- Pressure:
1450 PSI cont.
1813 PSI int. - Torque:
4337 in-lbs cont.
5133 in-lbs. int. - Speed:
155 RPM cont.
190 RPM int. - Flow:
15.9 GPM cont.
19.8 GPM int. - Mount 2 bolt SAE A
- Shaft 1″ dia. x 1.57″ long w/ 1/4″ key, tapped 1/4″-20
- Ports 1/2″ NPT
- Case Drain SAE 4
- Size 7.375″ x 5.18″ x 3.25″
- Shpg. 19 lbs.
