Description

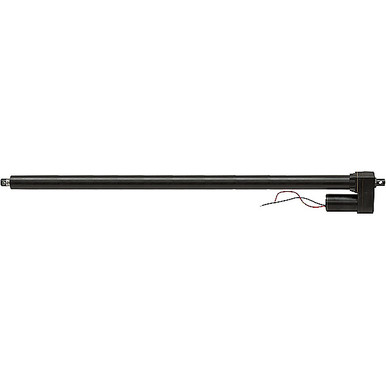

12 VOLT DC 1000 LB. LINEAR ACTUATOR
Brand new, GLIDEFORCE model LACT24-1000B heavy duty linear actuator. Ball screw drive with built-in overload clutch. Metal housing is water resistant and sealed against dust. Permanent magnet motor. (No limit switches or potentiometer)
SPECIFICATIONS
- Brand Glideforce
- Model Number LACT24-1000B
- Stroke 610 mm (24.02″)
- Voltage 12 Volt DC
- Push/Pull Rating
Dynamic 1000 lbs. max
- Extension Speed
No Load 0.66 in/sec
Max Load 0.56 in/sec
- Amps
No Load 2.4
Full Load 13.2
- Gear Ratio 20:1
- Duty 25%
- Operational Temperature Range
-13° F to +149° F
- Enclosure IP65
- Pin Holes 1/2″
- Retracted Length 35.04″
- Shaft Dia. 1-1/8″
- Size 36.06″ x 3.04″ x 5.97″
- Shpg. 19.1 lbs.
Mounting Brackets
| ID Series Linear Actuator Mounting Bracket – Aluminum GlideForce LA-ID-BRACKET |
500597 |
| ID Series Linear Actuator Mounting Bracket Steel GlideForce LA-ID-BRKT-S-PC |
501070 |
| Mounting Clevis for ID Series Linear Actuators Aluminum GlideForce LA-ID-CLEVIS |
501071 |
Compatible Polarity Reversing Switches
| DPDT-CO 30 Amp Maintained Toggle Switch GlideForce SWT-TOG-4W |
500725 |
| DPDT-CO 30 Amp Momentary Toggle Switch GlideForce SWT-TOG-MOM-4W |
500726 |
Optional Reversing Relay
| 12 Volt DC 100 Amp Reversing Relay GlideForce GF90-1244 |
500558 |
