Description

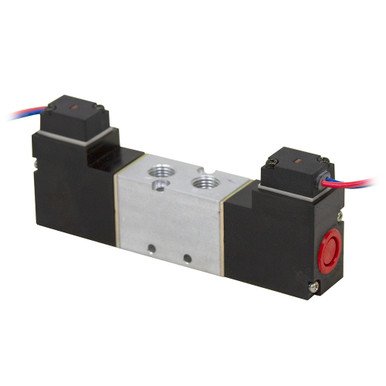

24 Volt DC 4-Way 3-Position Humphrey Solenoid Air Valve H203-4E2-13-L24VDC
SPECIFICATIONS
- Manufacturer Humphrey
- Model Number H203-4E2-13-L24VDC
- Type Standard direct acting solenoid valve
- Voltage 24 Volt DC
- Flow Coefficient (Cv) 0.36
- PSI Range 0-100
- Number of Solenoids 2
- Number of Positions 3
- Valve Function 4-Way 3-Position, Exhaust Center
- Number of Ports 5
- Ports A, B & P 1/4″ NPT
- Ports R1 & R2 1/4″ NPT
- Mount Two 4.4mm dia. Thru holes on 21mm x 10mm centers
- Override Non-Lock type manual override
- Electrical Connection Grommet type w/ LED Indicator
- Included Accessories N/A
- Size 5.8125″ x 1.0625″ x 2.3125″
- Shpg. 1.25 lbs.
