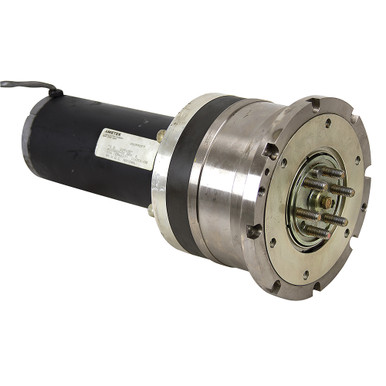

25 RPM 99 Volt DC Inline Gearmotor Ametek 119105 w/ 1/2″ Dia Rear Shaft

Description

25 RPM 99 VDC INLINE GEARMOTOR
Used takeouts. AMETEK model 119105 4103203-02 REV E permanent magnet motor mounted to heavy duty inline gear-reducer. 1/2″ dia. x 3/4″ long rear shaft.

SPECIFICATIONS

• RPM 25 RPM @ 99 VDC
• Voltage 99 VDC nominal
• Amperage 2.1 Amps @ 99 VDC, No load
• Gear Ratio 108:1
• Rotation Reversible
• Enclosure Totally Enclosed
• Duty Intermittent
• Output Rotating plate w/ six 3/8″-16 x 7/8″ long bolts on 2-5/16″ B.C.
• Face Mount Eight 5/16″ holes on 7-1/4″ B.C., Two 3/8″-16 tapped holes on 7-5/16″ B.C.
• Rear Mount Four 10-32 tapped holes on 3-1/4″ B.C.
• Overall size 7-7/8″ dia. x 15-1/4″ long
• Shpg. 44 lbs.
