25:1 SHAFT MOUNT REDUCER

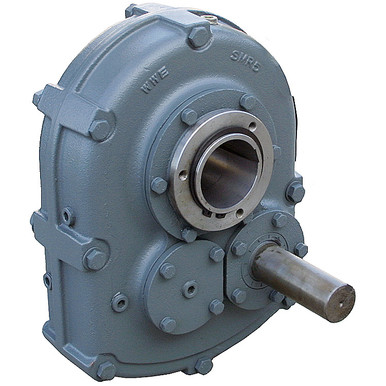

Brand new, WORLDWIDE ELECTRIC CORP shaft mount reducers. Cast iron housing, high grade case hardened steel gears and shafts. Double lip seals. Metal reinforced double lips, spring loaded oil seals. Premium quality ball and tapered bearings. Tapered bushing output (bushing not included). Torque arm included. Interchangeable with DODGE, HUB CITY, EDISON and BROWNING shaft mount reducers.
SPECIFICATIONS
- Brand WORLDWIDE ELECTRIC CORP
- Model SMR5-25/1
- Ratio 25:1
- Input Power see table below
- Output see table below
- Torque see table below
- Input Shaft 1-15/16″ diam. x 5-3/4″ w/ 1/2″ keyway
- Output Bore see table below
- Size 13-1/8″ x 18-5/16″ x 8-13/16″
- Shpg. 215 lbs.
| Service Class I |
Service Class II |
Service Class III |
| HP |
RPM |
Torque |
HP |
RPM |
Torque |
HP |
RPM |
Torque |
| 1.5 |
4 |
22613 in-lbs |
1.5 |
5-6 |
18091-15075 in-lbs |
0.75 |
4 |
11307 in-lbs |
| 2 |
4-6 |
30151-20101 in-lbs |
2 |
6-9 |
20101-13400 in-lbs |
1 |
4-6 |
15075-10050 in-lbs |
| 3 |
6-10 |
30151-18091 in-lbs |
3 |
9-14 |
20101-12922 in-lbs |
1.5 |
6-10 |
15075-9045 in-lbs |
| 5 |
10-17 |
30151-17736 in-lbs |
5 |
15-24 |
20101-12563 in-lbs |
2 |
8-13 |
15075-9277 in-lbs |
| 7.5 |
16-26 |
28266-17395 in-lbs |
7.5 |
22-38 |
20557-11902 in-lbs |
3 |
13-20 |
13916-9045 in-lbs |
| 10 |
21-36 |
28715-16750 in-lbs |
10 |
30-52 |
20101-11596 in-lbs |
5 |
21-36 |
14358-8375 in-lbs |
| 15 |
33-56 |
27410-16152 in-lbs |
15 |
48-82 |
18844-11031 in-lbs |
7.5 |
33-56 |
13705-8076 in-lbs |
| 20 |
46-78 |
26218-15462 in-lbs |
20 |
69-80 |
17479-15075 in-lbs |
10 |
46-78 |
13109-7731 in-lbs |
| 25 |
60-80 |
25126-18844 in-lbs |
– |
– |
– |
– |
– |
– |
OUTPUT BORE OPTIONS
| BORE |
ITEM |
BORE |
ITEM |
| 2-3/16″ |
602638 |
2-7/16″ |
602639 |
| 2-1/2″ |
602640 |
2-11/16″ |
602641 |
| 2-15/16″ |
602642 |
OTHER OPTIONS
| MOTOR MOUNT |
602612 |
| BACKSTOP ASSEMBLY |
602617 |
| BELT GUARD |
602654 |
