Description

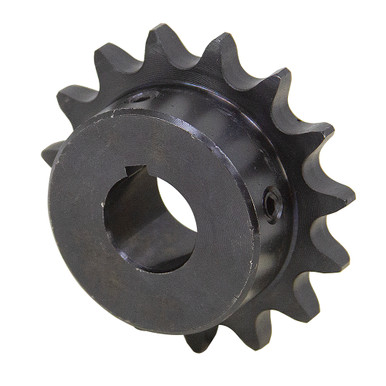

40 PITCH ANSI ROLLER CHAIN SPROCKET
Brand new. ANSI standard 40 pitch roller chain sprocket. Bored to size. One-piece carbon steel forged construction with hardened teeth and black oxide finish. Two set screws. Set screws are located directly over the keyway and 90° from keyway. Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 40
- Number of Teeth 26
- Bore Size 1″
- Model Number 40BS26H-1
- Outside Diameter 4.42″
- Hub Diameter 3-1/4″
- Hub Type B (Hub on one side)
- Length Through Bore 1″
- Keyway Size 1/4″ wide x 1/8″ depth
- Shpg. 2.34 lbs.
