Description

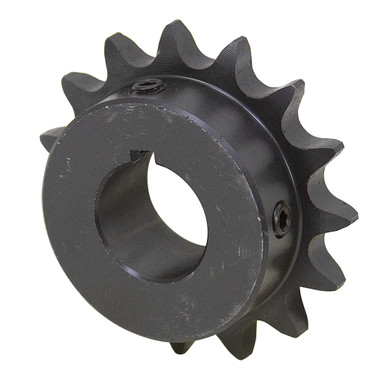

50 PITCH ANSI ROLLER CHAIN SPROCKET
New.ANSI standard 50 pitch roller chain sprocket.Bored to size.One-piece carbon steel forged construction with hardened teeth and black oxide finish.Two set screws.Set screws are located directly over the keyway and 90° from keyway.Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 50
- Number of Teeth 29
- Bore Size 1-7/16″
- Model Number 50BS29H-1-7/16
- Outside Diameter 6.12″
- Hub Diameter 3″
- Hub Type B (Hub on one side)
- Length Through Bore 1-1/4″
- Keyway Size 3/8″ wide x 3/16″ depth
- Shpg. 3.6 lbs.
