Description

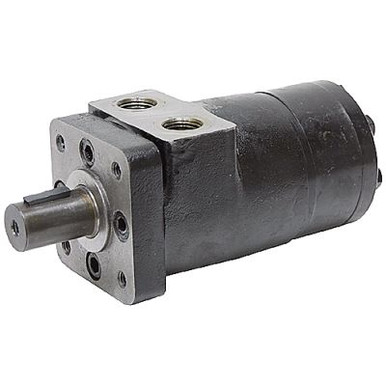

3.15 cu in DYNAMIC BMPH50H4KP HYD MOTOR
Brand new DYNAMIC BMPH series hydraulic motors. Gerotor power element. Interchangeable with the following motor lines: Dynamic BMPH, Danfoss DH, White RS, Parker/Ross MG/TB.
SPECIFICATIONS
- Brand Dynamic
- Model Number 61000
- Build Number BMPH-50-H4-K-P
- Disp. 3.15 cu. in. / rev.
- Motor Type Gerotor
- Pressure:
2031 PSI cont.
2538 PSI int. - Torque:
885 in-lbs. cont.
1133 in-lbs. int. - Speed:
1150 RPM cont.
1450 RPM int. - Flow:
15.8 GPM cont.
19.8 GPM int. - Rotation Reversible
- Mount 4 bolt 3.25″ bolt circle
- Shaft 1″ dia. x 1.57″ w/1/4″ Woodruff key, tapped 1/4-20
- Ports 1/2″ NPT
- Case Drain SAE 4
- Size 5-9/16″ x 3-1/4″ x 3-1/4″
- Shpg. 16 lbs.
