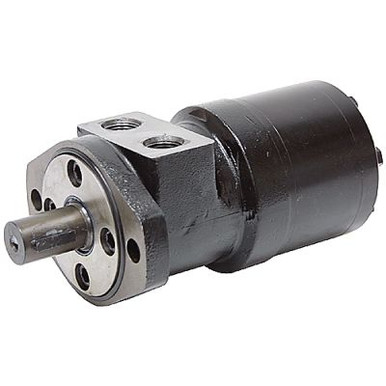

3.15 cu in Dynamic BMRS50H2KS Hydraulic Motor

Description

3.15 cu in DYNAMIC BMRS50H2KS HYDRAULIC MOTOR
Brand new. DYNAMIC BMRS series hydraulic motors. Gerolor power element. Interchangeable with the following motor lines: CHAR-LYNN S, DANFOSS DS, WHITE RS, PARKER – ROSS MG/TB.

SPECIFICATIONS

• Brand Dynamic
• Model Number 61320
• Build Number BMRS50H2KS
• Family BMRS
• Displacement 3.15 cu. in. / rev.
• Motor Type Gerolor
• Rotation Reversible
• Pressure:
     2031 PSI cont.
     2538 PSI int.
• Torque:
     885 in-lbs cont.
     1115 in-lbs. int.
• Speed:
     960 RPM cont.
     1150 RPM int.
• Flow:
     13.21 GPM cont.
     15.85 GPM int.
• Mount 2 bolt SAE A
• Shaft 1″ dia. x 1.57″ long w/ 1/4″ key, tapped 1/4″-20
• Ports SAE 10
• Case Drain SAE 4
• Size 5.6875″ x 5.18″ x 3.75″
• Shpg. 19 lbs.
