Description

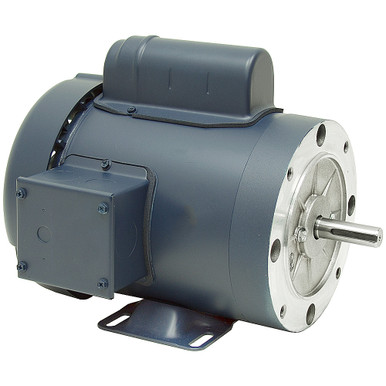

3/4 HP 3600 RPM 115/230 VOLT AC 56C FACE AND BASE MOUNT MOTOR
Brand new, Leeson model C6C34FK36 F general purpose electric motor. Capacitor start. Steel housing. No thermal overload protection. Made in the USA.
SPECIFICATIONS
- Brand Leeson
- Model Number C6C34FK36 F
- Catalog Number 112135
- Power 3/4 HP
- Voltage 115/208-230 Volt AC
- Amperage 10/5.2-5 Amps
- Speed 3600 RPM
- Rotation Reversible
- Phase 1
- Service Factor 1.15
- Bearings Ball
- Enclosure TEFC
- Duty Continuous
- Frame 56C
- Face Mount Four 3/8″-16 tapped holes on 5-7/8″ diameter bolt circle
- Rigid Base Mount Four 0.34″ dia. holes on 4-7/8″ x 3″ centers
- Shaft 5/8″ dia. x 1-7/8″ w/ 3/16″ keyway
- Size 9.25″ x 8.89″ x 9.05″
- Shpg. 26 lbs.
