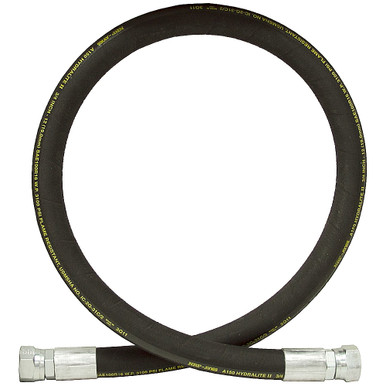

3/4" x 240" JIC 10F Swivel x JIC 10F Swivel SAE 100R16 Hydraulic Hose Assembly 3000 PSI NRP Jones

3/4″ x 240″ JIC 10F Swivel x JIC 10F Swivel SAE 100R16 Hydraulic Hose Assembly 3000 PSI NRP Jones

Original price was: $123.35.Current price is: $30.84.

SKU: 901339 Category:

Description

3/4″ X 240″ JIC 10F X JIC 10F 3000 PSI HYDRAULIC HOSE
Brand new, two-wire braided SAE 100R17 hydraulic hose assembly. Assembled in USA from NRP JONES hose stock and USA-made plated steel fittings. Oil and abrasion resistant Wearguard® neoprene jacket, MSHA approved. Oil resistant nitrile tube. Length measured from end to end.

SPECIFICATIONS

  • Hose Type SAE 100R17 HydraLite I, Two-Wire Braided
  • Overall Length 240″
  • Inside Hose Diameter 3/4″
  • Outside Jacket Diameter 1.16″
  • Fittings JIC 10F, Swivel
  • Minimum Bend Radius 4.75″
  • Temperature Range -40° to 250°F
  • Working Pressure 3000 PSI
  • Burst Pressure 12000 PSI
  • Shpg. 19 Lbs.
Compatible Hose Clamps
3/4″ Two Wire Hydraulic Hose Clamp 30mm ID A4-30H-A 902269
3/4″ Two Wire Dual Hydraulic Hose Clamp AT4-30H-A 902276
