Description

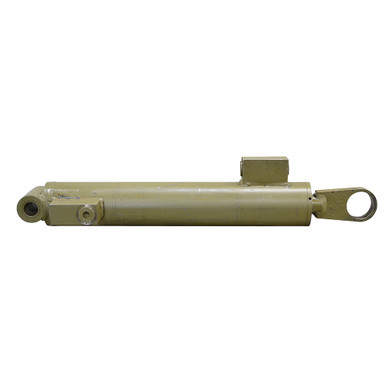

3.5″ x 15.125″ x 1.75″ HYDRAULIC CYLINDER
Unused old inventory. CCI 4868 welded, double acting hydraulic cylinder. Ports are located 90° from each other with cushion valve.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.5″ x 15.125″
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 1.75″
- Rod Thickness 1.75″
|
- Ports SAE 14
- Retracted Length 29″
- Gland Face to Rod Pin Center 4.5″
- Shpg. 69 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 1.272″
- Pin-Center-To-Tang-End 1.5″
- Pin Hole 2.437″
|
- Base End Cross-Tube
- O.D. 2.5″
- Width 4.25″
- Pin Hole 1.25″
|
