Sale!

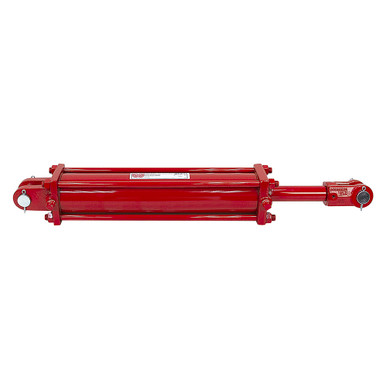

3.5" x 16" x 1.5" Double Acting Hydraulic Cylinder Bailey 661288

3.5″ x 16″ x 1.5″ Double Acting Hydraulic Cylinder Bailey 661288

Original price was: $112.60.Current price is: $28.15.

SKU: 904498 Category:

Description

3.5″ x 16″ x 1.5″ DOUBLE ACTING HYDRAULIC CYLINDER
New. Double acting hydraulic cylinder. Bailey numbers on cylinder 661288.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3.5″ x 16″
  • Barrel Thickness 0.21″
  • Gland Retainer Tie-rod
  • Pressure 2500 PSI
  • Rod Dia. 1.5″
  • Ports 1/2″ NPT
  • Retracted Length 31.5″
  • Gland Face to Rod Pin Center 9.07″
  • Shpg. 54 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 2.61″
  • Inside Width 1.44″
  • Throat Depth 2.07″
  • Pin Hole 1-1/4″
  • Base End Clevis
  • Outside Width 2.6″
  • Inside Width 1.22″
  • Throat Depth 2.21″
  • Pin Hole 1-1/4″
