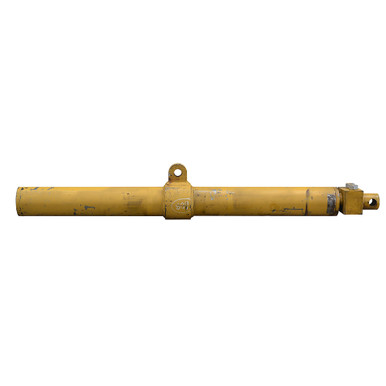

3.5″ x 33.5″ x 2″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old iventory. Double acting hydraulic cylinder. Cylinder has cartridge valves on rod end stamped with SUN 9JU1 CKEB XCN. Cylinder also has extend/retract ports on manifold at rod end that contain two cartridge valves.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.5″ x 33.5″
- Barrel Thickness 0.270″
- Gland Retainer Threaded in gland
- Pressure 3000 PSI max.
- Rod Dia. 2″, Hollow
- Rod Thickness 0.373″
|
- Ports SAE 6
- Retracted Length 26.5″ (side mount pin center to rod pin center)
- Overall Length 48.25″ (base end flat to rod pin center)
- Gland Face to Rod Pin Center 4.625″
- Shpg. 131 lbs.
|
| END MOUNTINGS |
- Rod End Thru-Hole
- Width 2.125″
- Pin Center to Rod End 0.985″
- Pin Hole 1″
|
- Side Mount Tang
- Thickness 1.25″
- Pin Center to Tang End 1.25
- Dimensions 2.5″ x 2.5″
- Pin Hole 1″
|
|
