Description

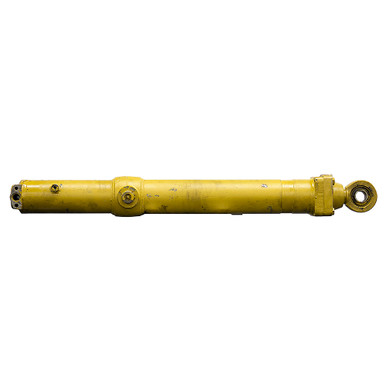

3.5″ x 35″ x 1.965″ (50mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused, old inventory. FIAT-ALLIS model 08293996 welded cylinder with bolt-on gland cap.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3-1/2″ x 35″
- Barrel Thickness 1/2″
- Pressure 3000 PSI max.
- Rod Dia. 1.965″ (50mm)
|
- Ports Two-Bolt Flange w/ 0.796″ I.D. port and M12-1.75 tapped holes on 2-3/16″ centers
- Retracted Length 48″
- Shpg. 210 lbs.
|
| END MOUNTINGS |
- Rod End Tang w/ Swivel Eye
- Max Thickness 1-5/8″
- Pin Center to Tang End 2-3/16″
- Pin Hole 1-3/8″
|
- Trunnion Male
- Pin Outside Width 8-5/8″
- Pin Inside Width 5-1/2″
- Pin Center to Rod Pin Center 30-11/16″
- Pin Center to Base End 15″
- Pin Diameter 1.573″ (40mm)
|
