Description

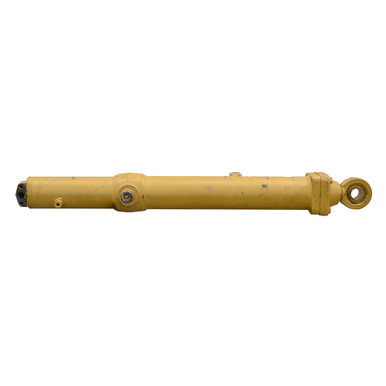

3.547″(90mm) x 35.25″(895.35mm) x 1.97″(50mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder requires a two bolt flange- one on the base and one on the rod end. Numbers on cylinder 8293995
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.547″(90mm) x 35.25″(895.35mm)
- Barrel Thickness 0.483″
- Gland Retainer Bolt on gland
- Pressure 3000 PSI max.
- Rod Dia. 1.97″(50mm)
|
- Ports Two bolt flange with 0.411″ on 2.25″ centers and 0.790″ port hole
- Retracted Length 30.75″
- Gland Face to Rod Pin Center 2.5″
- Shpg. 143 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Thickness, Max 1.61″
- Pin-Center-To-Swivel Eye-End 2.16″
- Swivel Eye Width 1.625″
- Pin Hole 1.38″(35mm)
|
- Base End Male Trunnion
- Pin Outside/Inside Width 8.625″ / 5.5″
- Pin-Center-To-Rod Pin Center 30.75″
- Pin Center To Base End 15″
- Pin Diameter 1.577″(40mm)
|
