Description

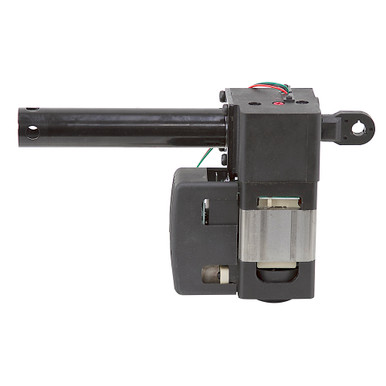

3.75″ STROKE 120 VOLT AC LINEAR ACTUATOR
New, FBS model LMA4203S capacitor-start linear actuator. Power extend and power retract. Hall effect sensor connected to internal gearing.
SPECIFICATIONS
- Brand FBS
- Model Number LMA4203S
- Voltage 120 Volt AC, 60 Hz
- Amperage 1.4 Amps
- Capacity Unknown
- Thread 9/16″ dia. Acme thread
- Stroke 3-3/4″
- Extension Speed 0.1875″ / sec. (no load)
- Extension Time 20 seconds to Full Stroke, No Load
- Limit Switches NA
- Direction Reversible
- Duty Intermittent (4.5 min ON, 25 min OFF)
- Retracted length 9″
- Rod end pin hole 3/8″
- Base end pin hole 3/8″
- Size 9-7/8″ x 5-7/8″ x 3″
- Shpg. 6 lbs.
