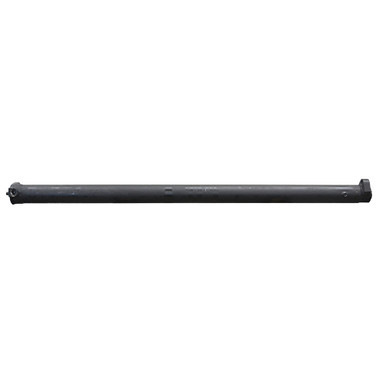

3.75" x 56.5" x 2.75" Double Acting Hydraulic Cylinder

3.75″ x 56.5″ x 2.75″ Double Acting Hydraulic Cylinder

Original price was: $249.95.Current price is: $62.49.

SKU: 901458 Category:

Description

3.75″ x 56.5″ x 2.75″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Rod end of cylinder is stepped down. First step down is 2.25″ dia. x 0.35″ long and second step down is 1.5″ dia. x 0.15″ long. Rod end has side mount 1.23″ thick with 1/2″ pin hole. Base end has side mount 1.5″ thick and 0.86″ pin hole.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3.75″ x 56.5″
  • Barrel Thickness 0.277″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI max.
  • Rod Dia. 2.75″
  • Extend Port SAE 14
  • Retract Port 3/8″ NPT
  • Retracted Length 83″
  • Shpg. 279 lbs.
END MOUNTINGS
  • Rod End Tapped
  • Thread size-Pitch 5/8″-11″
  • Thread Depth 2.16″
  • Base End Solid Male Mounting Pin
  • Dimensions 0.77″ dia. tapered to 0.72″ x 0.55″ long
