Description
PILOT OPERATED CHECK VALVE

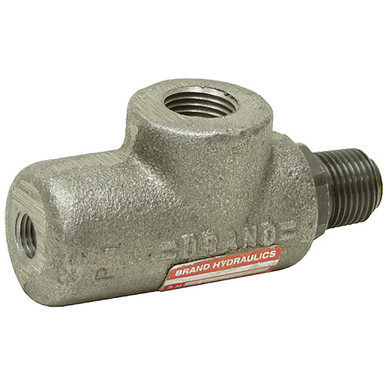

Brand new, BRAND model PC37C pilot operated check valve. In one direction oil passes freely through the valve to the cylinder. In the other direction flow is blocked in the cylinder by the valve. Until pressure is applied at the pilot port allowing flow from the cylinder back through the valve.
SPECIFICATIONS
- Manufacturer BRAND
- Model Number PC37C
- Inlet Port 3/8″ NPT female
- Outlet Port 3/8″ NPT male
- Pilot Port 1/4″ NPT
- Max. Pressure 3000 PSI
- Max. Flow 8 GPM
- Pilot Ratio 3.2:1
- Size 3.4375″ x 0.625″ x 1.5625″
- Shpg. 1.5 lbs.
