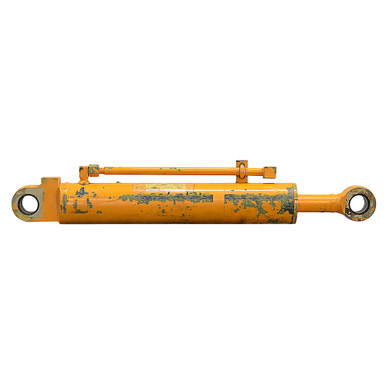

3.92"(100mm) x 18.5" x 1.97"(50mm) Double Acting Hydraulic Cylinder Hyundai 31L1-1504

3.92″(100mm) x 18.5″ x 1.97″(50mm) Double Acting Hydraulic Cylinder Hyundai 31L1-1504

Original price was: $149.95.Current price is: $37.49.

SKU: 904571 Category:

Description

3.92″(100mm) x 18.5″ x 1.97″(50mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. HYUNDAI numbers on cylinder 31L1-1054.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3.92″(100mm) x 18.5″
  • Barrel Thickness 0.317″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI
  • Rod Dia. 1.97″(50mm)
  • Ports JIS 30° flare, BSPP threads
  • Retracted Length 36.5″
  • Gland Face to Rod Pin Center 7″
  • Shpg. 99 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 2.39″
  • Pin-Center-To-Tang-End 1.93″
  • Pin Hole 1.98″(50mm)
  • Base End Tang
  • Thickness, Max 2.38″
  • Pin-Center-To-Tang-End 1.89″
  • Pin Hole 1.98″(50mm)
