3.937"(100mm) x 29.625" x 2.362"(60mm) Double Acting Hydraulic Cylinder Komatsu 235-63-22000

3.937″(100mm) x 29.625″ x 2.362″(60mm) Double Acting Hydraulic Cylinder Komatsu 235-63-22000

Original price was: $329.95.Current price is: $65.99.

SKU: 904027 Category:

Description

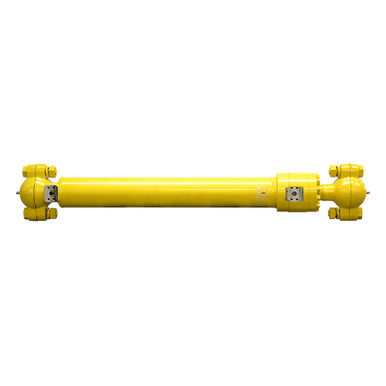

3.937″ (100mm) x 29.625″ x 2.362″ (60mm) DOUBLE ACTING HYDRAULIC CYLINDER
New, KOMATSU model 235-63-22000 welded cylinder with bolt-on gland cap. Retracted length measured from ball socket center to ball socket center.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 100mm (3.937″) x 29-5/8″
  • Barrel Thickness 8mm (0.315″)
  • Pressure 3000 PSI max.
  • Rod Dia. 60mm (2.362″)
  • Ports JIC Flange with Four 8mm bolt holes on 43mm (1.693″) x 19.5mm (0.767″) centers
  • Retracted Length 46-3/4″, See Paragraph
  • Shpg. 230 lbs.
END MOUNTINGS
  • Cylinder Ends 100mm (3.937″) Ball Joint Sockets
