3.94"(100mm) x 37.625"(956mm) x 1.97"(50mm) Double Acting Hydraulic Cylinder Volvo 4784618

3.94″(100mm) x 37.625″(956mm) x 1.97″(50mm) Double Acting Hydraulic Cylinder Volvo 4784618

Original price was: $299.95.Current price is: $74.99.

SKU: 904777 Category:

Description

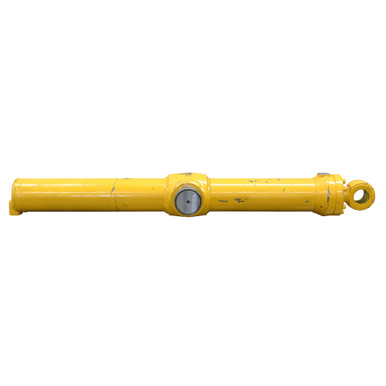

3.94″(100mm) x 37.625″(956mm) x 1.97″(50mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. VOLVO double acting hydraulic cylinder. Numbers on cylinder 4784618.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3.94″(100mm) x 37.625″(956mm)
  • Barrel Thickness 0.315″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 1.97″(50mm)
  • Ports 4 bolt 1/2″ code 61 flange size 8
  • Retracted Length 23.75″ (trunnion)
  • Gland Face to Rod Pin Center 2.75″
  • Shpg. 154 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 2.37″
  • Pin-Center-To-Tang-End 1.96″
  • Pin Hole 1.97″(50mm)
  • Base End Male Trunnion
  • Pin Outside/Inside Width 10.125″ / 6.65″
  • Pin-Center-To-Rod Pin Center 23.75″
  • Pin Center To Base End 23.5″
  • Pin Dia. 3.54″(90mm)
