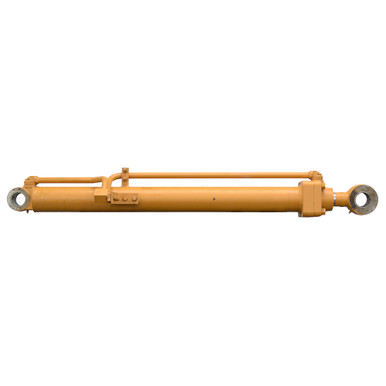

3.94"(100mm) x 43.875"(1114mm) x 2.56"(65mm) Double Acting Hydraulic Cylinder 04-730-1515

3.94″(100mm) x 43.875″(1114mm) x 2.56″(65mm) Double Acting Hydraulic Cylinder 04-730-1515

Original price was: $299.95.Current price is: $74.99.

SKU: 904806 Category:

Description

3.94″(100mm) x 43.875″(1114mm) x 2.56″(65mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 04-730-1515.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3.94″(100mm) x 43.875″(1114mm)
  • Barrel Thickness 0.319″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 2.56″(65mm)
  • Ports BSPP 12
  • Retracted Length 61.125″
  • Gland Face to Rod Pin Center 5.375″
  • Shpg. 260 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 2.75″
  • Pin-Center-To-Tang-End 2.875″
  • Pin Hole 2.56″(65mm)
  • Base End Tang
  • Width 2.75″
  • Pin-Center-To-Tang-End 2.2″
  • Pin Hole 2.36″(60mm)
