Description

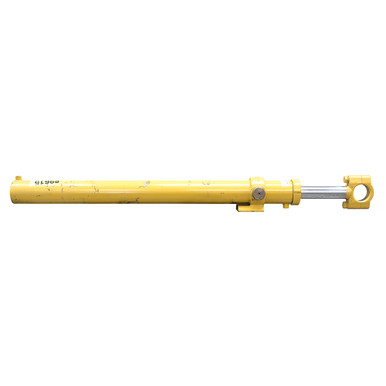

3.98″(101mm) x 50.25″(1276mm) x 2.49″(63mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. VOLVO double acting hydraulic cylinder. Numbers on cylinder 71072900.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.98″(101mm) x 50.25″(1276mm)
- Barrel Thickness 0.25″
- Gland Retainer Externally threaded
- Pressure 3000 PSI
- Rod Dia. 2.49″(63mm)
|
- Ports SAE 8
- Retracted Length 20.5″
- Gland Face to Rod Pin Center 12.125″
- Shpg. 218 lbs.
|
| END MOUNTINGS |
- Rod End Swivel-Ball Receiver
- Ball Width 2.02″
- Ball O.D. 3.5″
|
- Base End Male Trunnion
- Pin Outside/Inside Width 8.75″ / 5.53″
- Pin-Center-To-Rod Pin Center 20.5″
- Pin Center To Base End 47.5″
- Pin Dia. 2-3/8″
|
