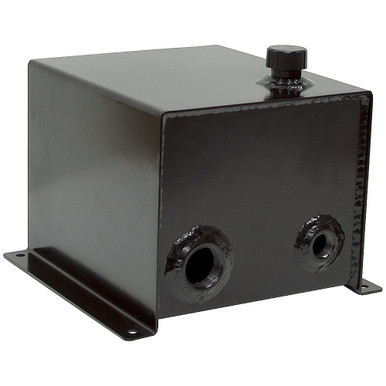

3 Gallon Hydraulic Reservoir/Tank

Description

3 GALLON HYDRAULIC RESERVOIR
Brand new, superior quality hydraulic reservoir. Constructed of 12 gauge, black powder-coated steel. 3/4″ NPT fill port on top of reservoir with plastic thread-in breather. Integral mounting foot on each end. Drain port sealed with removable steel plug. Select a reservoir with capacity at least equal to pump flow GPM (e.g. 3 gallon reservoir capacity minimum for system with 3 GPM pump). Made in USA.

SPECIFICATIONS

• Capacity 3 gallons usable
• Ports:
     1-1/4″ NPT x one
     3/4″ NPT x two
• Mount 4 bolts 10-7/8″ x 10″ C/C
• Mounting Holes 3/8″ dia.
• Tank Size W/O Feet Or Filler
     9-3/4″ x 11-1/4″ x 8-5/8″
• Tank Height To Filler Cap Top 10-1/8″
• Foot-Print 12-1/4″ x 11-1/4″
• Shpg. 24 lbs.
