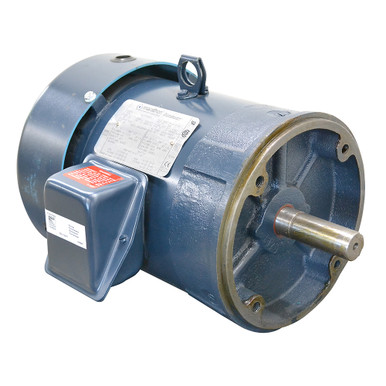

3 HP 3532 RPM 208-230/460 VOLT AC 3 PHASE MOTOR
New, MARATHON model 184TTFB6004 premium efficiency three phase, electric motor. Inverter-rated, speed range 10:1. No thermal overload protection.
SPECIFICATIONS
- Brand Marathon
- Model 182TTFB6004
- Power 3 HP
- Voltage 208-230/460 Volt AC
- Amperage 7.9-7.6/3.8 Amps
- Speed 3532 RPM
- Rotation Reversible
- Phase 3
- Service Factor 1.15
- Bearings Ball
- Enclosure TEFC
- Duty Continuous
- Frame 184TC
- Face Mount Four 1/2″-13 tapped holes on 7-1/4″ dia. bolt circle
- Shaft 1-1/8″ dia. x 2-5/8″ w/ 1/4″ keyway
- Size 15.5″ x 12″ x 10.5″
- Shpg. 90 lbs.
