Description

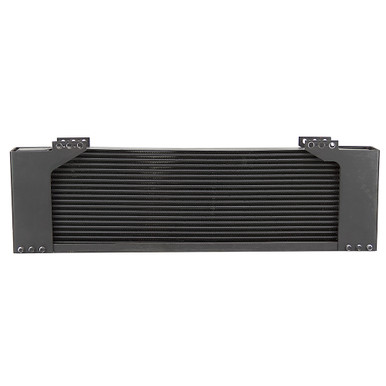

OIL COOLER
New intercooler with aluminum cooling surface, steel body construction. Originally designed to mount to side of JOHN DEERE radiator (our item 28-1738, sold separately) for cooling inlet air for turbo applications. Core is 3″ thick.
SPECIFICATIONS
- Dimensions 43-3/4″ x 13-1/2″ x 9-1/4″
- Cooling Surface 33″ x 12″
- Pressure Rating Unknown
- Flow Unknown
- Ports 3″ O.D. Hosebarb
- Top Mounts Six 9/16″ x 7/16″ slots on 1-1/4″ to 2-1/2″ centers and four 5/16″ dia. holes on 1-1/4″ centers, Each Side
- Bottom Mounting Holes Four 5/16″-18 tapped holes on 10″ to 18″ to 26″ centers (front) and four 5/16″-18 tapped holes on 9-3/4″ to 19-1/2″ to 28-1/4″ centers (bottom rear)
- Shpg. 70 lbs.
