Description

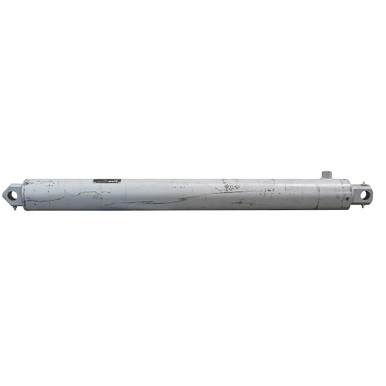

3″ x 31.25″ x 2.5″ SINGLE ACTING HYDRAULIC CYLINDER
Unused old inventory. PARKER B5347 9370.606953 209795, welded, single acting displacement type hydraulic cylinder.
| SPECIFICATIONS |
- Single Acting
- Bore x Stroke 3″ x 31.25″
- Gland Retainer Thread in
- Pressure 2500 PSI max.
- Rod Dia. 2.5″
- Rod Thickness 2.5″
|
- Ports SAE 8
- Retracted Length 38.75″
- Gland Face to Rod Pin Center 1.75″
- Shpg. 88 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 1.265″
- Pin-Center-To-Tang-End 0.981″
- Pin Hole 1.032″
|
- Base End Tang
- Width 1.5″
- Pin-Center-To-Tang-End 1.25″
- Pin Hole 1.032″
|
