Description

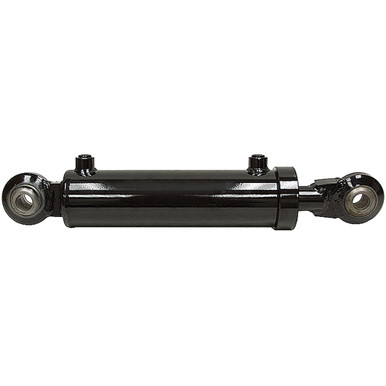

3″ x 8″ x 1.5″ TOP LINK DOUBLE ACTING CYLINDER
New cylinder Columbus Hydraulics HDE3.00-2460. External gland for superior performance at high pressure. Self aligning swivel eye at each end.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3″ x 8″
- Gland Retainer Externally Threaded
- Pressure 3000 PSI max.
|
- Rod Dia. 1.5″
- Ports 1/2″ NPT
- Retracted Length 19.5″
- Gland Face to Rod Pin Center 40″
- Shpg. 27 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 1.5″
- Swivel Eye Width 1.75″
- Pin Hole 1.00″
|
- Base End Swivel Eye
- Width 1.5″
- Swivel Eye Width 1.75″
- Pin Hole 1.00″
|
