Description

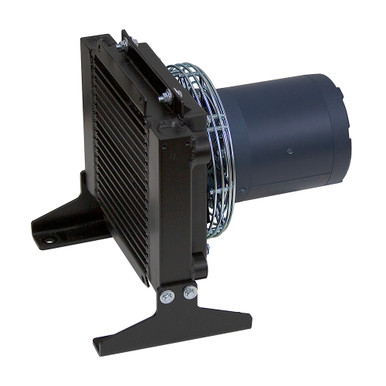

30 GPM AKG AR5-3 Oil Cooler w/ 230/460 Volt 3 Phase Fan
Brand NEW AKG AR series oil cooler that features aluminum construction, 230/460 Volt AC 3 phase fan, leak-free SAE O-Ring connections, zinc plated steel fan guard and powder painted steel mounting brackets.
SPECIFICATIONS
- Manufacturer AKG
- Model Number AR5-3
- Pressure 377 PSI max.
- Temperature 250 F° max.
- Construction Aluminum cooler and steel shroud/mounting brackets
- Flow 30 GPM
- Fan Motor HP 1/3
- Phase 3
- Fan Motor Voltage 230/460
- Amps 1.1
- Heat Removed Based On 50 F°
Entering Temperature Difference (BTU/HR) 12510 - Airflow Direction Pull
- Port Size SAE 12
- Mount Four 1/2″ bolt holes on 7.09″ x 11.93″ centers
- Overall Depth (in.) 12.56
- Overall Width (in.) 13.78
- Overall Height (in.) 13.74
- Shpg. 42 lbs.
