Description

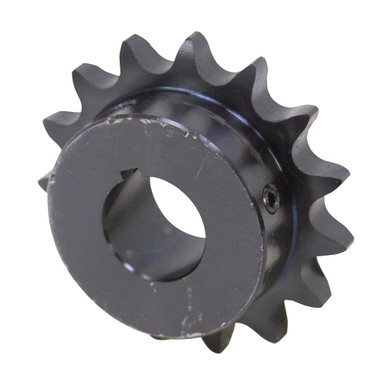

60 PITCH ANSI ROLLER CHAIN SPROCKET
Brand new.ANSI standard 60 pitch roller chain sprocket.Bored to size.One-piece carbon steel forged construction with hardened teeth and black oxide finish.Two set screws.Set screws are located directly over the keyway and 90° from keyway.Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 60
- Number of Teeth 35
- Bore Size 2″
- Model Number 60BS35H-2
- Outside Diameter 8.78″
- Hub Diameter 4″
- Hub Type B (Hub on one side)
- Length Through Bore 1-1/4″
- Keyway Size 1/2″ wide x 1/4″ depth
- Shpg. 10 lbs.
