4.13"(105mm) x 38.94"(990mm) x 2.76"(70mm) Double Acting Hydraulic Cylinder Komatsu 208-03-02303

4.13″(105mm) x 38.94″(990mm) x 2.76″(70mm) Double Acting Hydraulic Cylinder Komatsu 208-03-02303

Original price was: $299.95.Current price is: $74.99.

SKU: 904928 Category:

Description

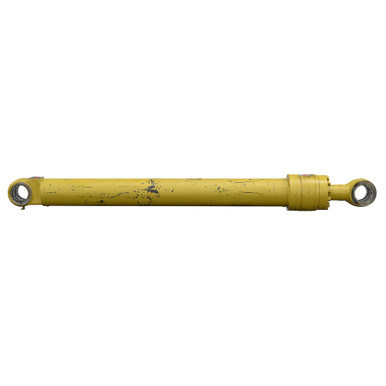

4.13″(105mm) x 38.94″(990mm) x 2.76″(70mm)  DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. KOMATSU double acting hydraulic cylinder. Numbers on cylinder 208-03-02303.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.13″(105mm) x 38.94″(990mm)
  • Barrel Thickness 0.361″
  • Gland Retainer Bolt on
  • Pressure 3000 PSI
  • Rod Dia. 2.76″(70mm)
  • Ports JIS flange four M8-1.25 x 25mm tapped holes on 0.788″ x 1.696″ centers w/ 0.653″ port hole
  • Retracted Length 59″
  • Gland Face to Rod Pin Center 6.375″
  • Shpg. 265 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.125″
  • Pin-Center-To-Tang-End 2.5″
  • Pin Hole 2.76″(70mm)
  • Base End Tang
  • Width 3.25″
  • Pin-Center-To-Tang-End 2.25″
  • Pin Hole 2.76″(70mm)
