Description

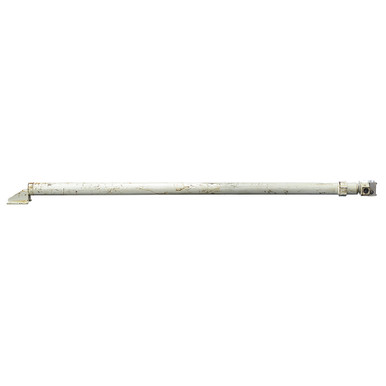

4.25″ x 142″ x 3″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has 8-1/4″ x 8″ mounting flange welded to base end with 0.435″ holes on 6-3/4″ x 2-1/2″ centers. Cylinder has two, SUN 890 2271 9906 02C cartridge valves. Cylinder has scarring on first 4′ of stroke but does not leak at seal. Numbers on cylinder 2716473D 100JV0012 0300RMT.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.25″ x 142″
- Barrel Thickness 0.388″
- Gland Retainer Threaded in gland
- Pressure 3000 PSI
- Rod Dia. 3″, Hollow
- Rod Thickness 0.5″
|
- Ports SAE 12
- Shpg. 641 lbs.
|
| END MOUNTINGS |
- Rod End Threaded Female Trunnion 1-3/4″-12 x 1.25″
- Pin Outside/Inside Width 12″ / 7.25″
- Pin-Center-To-Rod Pin Center 8.5″
- Pin Center To Base End 170″
- Pin Diameter 2″
|
- Base End Square Male Trunnion
- Pin Outside/Inside Width 11.75″ / 9″
- Pin-Center-To-Rod Pin Center 8.5″
- Pin Center To Base End 161.5″
- Pin Diameter 2.5″ x 3″
|
