4.27 cu in Hydraulic Pump Dynamic GP-F25-70-P-C

Description

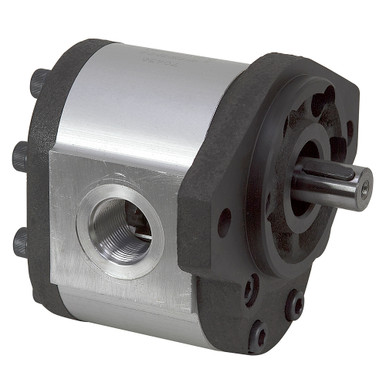

4.27 CU IN DYNAMIC GP-F25-70-P-C HYDRAULIC PUMP
Brand new. Dynamic GP-F25-70-P-C hydraulic gear pump. Constructed of an aluminum center section and cast iron end plates.

SPECIFICATIONS

• Manufacturer Dynamic
• Model Number 70554
• Build Number  GP-F25-70-P-C
• Disp. 4.27 cu. in. / rev.
• Pump Type Gear
• Rotation CW
• Pressure:
     3625 PSI Peak
• Speed:
     1500 RPM Rated
     2500 RPM Max.
• Flow:
     25.28 GPM Rated
     42.05 GPM Max.
• Mount 2 bolt SAE B
• Shaft 7/8″ dia. x 1.81″ long with 1/4″ wide keyway/li>
• Rqd. Filtration 25 micron
• Inlet Port SAE 20
• Outlet Port SAE 16
• Size 6.22″ x 6.85″ x 6.32″
• Shpg. 25 lbs.
