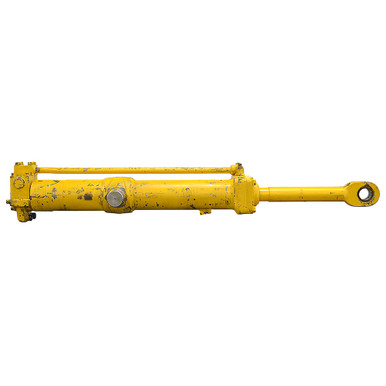

4.47"(114mm) x 25.125"(638mm) x 2.36"(60mm) Double Acting Hydraulic Cylinder

4.47″(114mm) x 25.125″(638mm) x 2.36″(60mm) Double Acting Hydraulic Cylinder

Original price was: $279.95.Current price is: $69.99.

SKU: 904600 Category:

Description

4.47″(114mm) x 25.125″(638mm) x 2.36″(60mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.47″(114mm) x 25.125″(638mm)
  • Barrel Thickness 0.339″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 2.36″(60mm)
  • Ports JIS 60° cone, M30 x 1.5
  • Retracted Length 42″
  • Gland Face to Rod Pin Center 18.125″
  • Shpg. 283 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Width 1.58″
  • Pin-Center-To-Swivel Eye-End 2.54″
  • Swivel Eye Width 1.375″
  • Pin Hole 1.97″(50mm)
  • Base End Male Trunnion
  • Pin Outside/Inside Width 10″ / 6″
  • Pin-Center-To-Rod Pin Center 42″
  • Pin Center To Base End 15″
  • Pin Diameter 2-3/4″
