Sale!

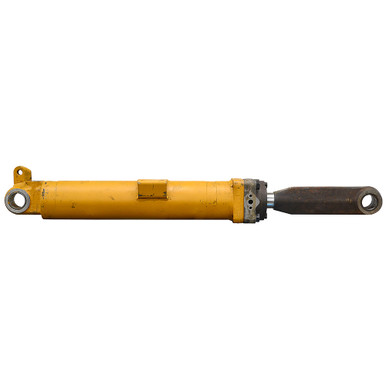

4.5" x 19.5" x 2.125" Double Acting Hydraulic Cylinder 143492

4.5″ x 19.5″ x 2.125″ Double Acting Hydraulic Cylinder 143492

Original price was: $149.95.Current price is: $37.49.

SKU: 902550 Category:

Description

4.5″ x 19.5″ x 2.125″ DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Model 143492

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke4.5″ x 19.5″
  • Barrel Thickness 0.385″
  • Gland Retainer Bolt on gland
  • Pressure3000 PSI max.
  • Rod Dia.2.125″
  • Ports 2 bolt Flange port on 40mm bolt centers tapped M10-1.5 with 15.875mm hole
  • Retracted Length 47″
  • Shpg. 154 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 2.75″
  • Pin-Center-To-Tang-End 1.864″
  • Pin Hole 50mm
  • Base End Tang
  • Thickness, Max 2.75″
  • Pin-Center-To-Tang-End 1.935″
  • Pin Hole 50mm
