Description

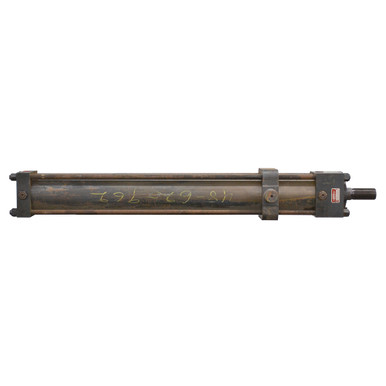

4.5″ x 32″ x 1.625″ HYDRAULIC CYLINDER
Unused old inventory. UNIVERSAL FLUID DYNAMICS NC5TBR, tie-rod, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.5″ x 32″
- Gland Retainer 4-Hole
- Pressure 2500 PSI max.
- Rod Dia. 1.625″
- Rod Thickness 1.625″
|
- Ports 3/4″ NPT
- Retracted Length 44.625″
- Gland Face to Rod Pin Center 4″
- Shpg. 171 lbs.
|
| END MOUNTINGS |
- Rod End Threaded
- Thread size-Pitch 1-1/2″-12 TPI
- Thread Length 3″
|
- Base End Male Trunnion
- Pin Outside/Inside Width 9″ / 6.25″
- Pin-Center-To-Rod Pin Center 13.5″
- Pin Center To Base End 31.125″
- Pin Diameter 1.5″
|
