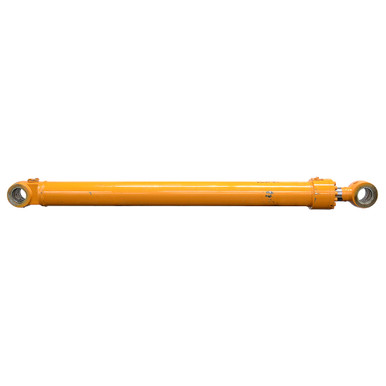

4.7"(120mm) x 53.25"(1352.55mm) x 3.14"(80mm) Double Acting Hydraulic Cylinder

4.7″(120mm) x 53.25″(1352.55mm) x 3.14″(80mm) Double Acting Hydraulic Cylinder

Original price was: $399.95.Current price is: $79.99.

SKU: 904484 Category:

Description

4.7″(120mm) x 53.25″(1352.55mm) x 3.14″(80mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.7″(120mm) x 53.25″(1352.55mm)
  • Barrel Thickness 0.425″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.14″(80mm)
  • Ports 4 bolt 3/4″ code 61 flange size 12
  • Retracted Length 76″
  • Gland Face to Rod Pin Center 6.625″
  • Shpg. 414 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 3.93″
  • Pin-Center-To-Tang-End 2.83″
  • Pin Hole 3.16″(80mm)
  • Base End Tang
  • Thickness, Max 5.1″
  • Pin-Center-To-Tang-End 2.74″
  • Pin Hole 3.16″(80mm)
