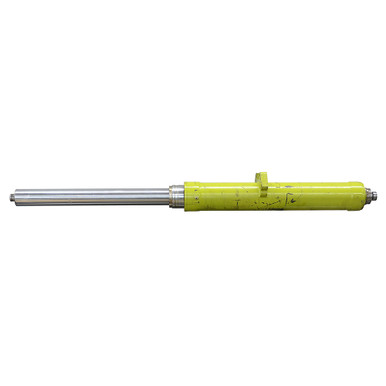

4.875" x 169.5" Single Acting Four-Stage Double Rod Telescoping Hydraulic Cylinder

4.875″ x 169.5″ Single Acting Four-Stage Double Rod Telescoping Hydraulic Cylinder

Original price was: $899.95.Current price is: $179.99.

SKU: 902518 Category:

Description

4.875″ x 169.5″ SINGLE-ACTING TELESCOPING CYLINDER
Unused old inventory. Single acting four stage double rod telescoping hydraulic cylinder. Cylinder is double rod with two stages that extend out of each side. Main body has a side mount with two holes that are 0.56″, one hole 0.675″, and one hole 0.648″.  Cylinder has bleeder screw on one rod end and four bolt flange work port on other end.

SPECIFICATIONS
  • Single Acting
  • Main Cyl Bore x Total Stroke 4.875″ x 110.5″
  • Thickness 0.317″
  • Number of Stages 2
  • Pressure 2000
  • Rod Dia. 1.75″
  • Ports 4 bolt flange with 1/4″-28 drilled and tapped holes on 1.125″ x 0.645″ bolt centers
  • Overall Length 72.5″
  • Shpg. 273 lbs.
END MOUNTINGS
  • Rod End One Stud
  • Dimensions 1.5″ dia. x 1-1/8″ long with 3/16″ machined groove
  • Rod End Two Flat
  • Dimensions 1.75″ O.D. with two grooves
