Description

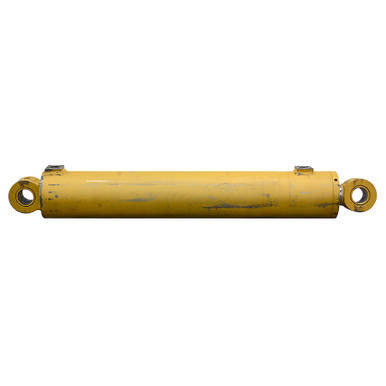

4.92″(125mm) x 26.56″(675mm) x 2.56″(65mm) DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 52741046.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke4.92″(125mm) x 26.56″(675mm)
- Barrel Thickness 0.45″
- Gland Retainer Threaded in
- Pressure3000 PSI
- Rod Dia. 2.56″(65mm)
|
- Ports 1.98″ x 2.17″ flange w/ four M7-1.0 tapped bolt holes on 1.26″ x 1.46″ centers and 1.04″ port hole
- Retracted Length40.5″
- Gland Face to Rod Pin Center 2.75″
- Shpg. 213 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 2.76″
- Pin-Center-To-Tang-End 2.08″
- Pin Hole 1.89″(48mm)
|
- Base End Tang
- Width 2.76″
- Pin-Center-To-Tang-End 2.06″
- Pin Hole1.89″(48mm)
|
