Description

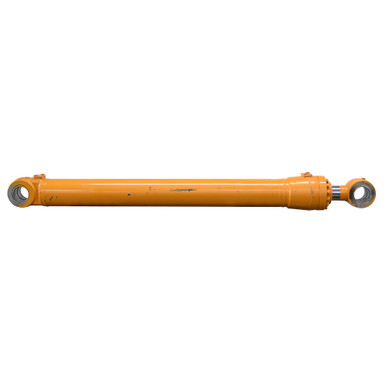

4.92″(125mm) x 48.54″(1233mm) x 3.15″(80mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. SAMSUNG double acting hydraulic cylinder. Numbers on cylinder 1146-00010.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.92″(125mm) x 48.54″(1233mm)
- Barrel Thickness 0.5″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia. 3.15″(80mm)
|
- Ports 4 bolt 3/4″ code 61 flange size 12
- Retracted Length 70.5″
- Gland Face to Rod Pin Center 6.25″
- Shpg. 425 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 3.92
- Pin-Center-To-Tang-End 3.04″
- Pin Hole 3.15″(80mm)
|
- Base End Tang
- Width 4.33″
- Pin-Center-To-Tang-End 3.16″
- Pin Hole 3.15″(80mm)
|
