Description

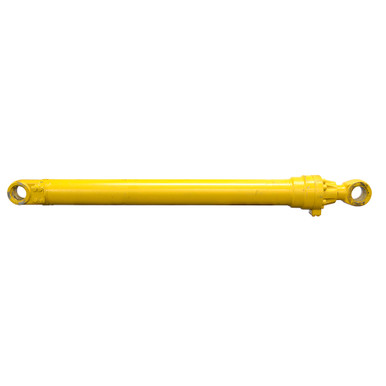

4.92″(125mm) x 51.75″(1315mm) x 3.35″(85mm) DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 508061.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke4.92″(125mm) x 51.75″(1315mm)
- Barrel Thickness 0.375″
- Gland Retainer Bolt on
- Pressure3000 PSI
- Rod Dia. 3.35″(85mm)
|
- Extend Port 4 bolt 1″ code 62 flange size 16
- Retracted Length73″
- Gland Face to Rod Pin Center 4.875″
- Shpg. 418 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 3.77″
- Pin-Center-To-Tang-End 2.5″
- Pin Hole 3.15″(80mm)
|
- Base End Tang
- Width 3.77″
- Pin-Center-To-Tang-End 2.77″
- Pin Hole 3.15″(80mm)
|
