Description

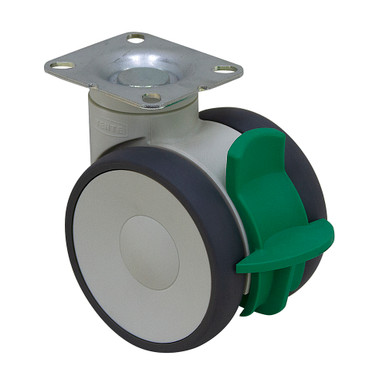

4″ x 3-1/4″ DUAL WHEEL SWIVEL PLATE CASTER W/ DIRECTIONAL PLATE LOCK
New, TENTE model 5941UAP100P509002 dual wheel swivel plate caster with polyurethane tread on polyamide wheels. Two position directional plate lock. Swivel plate has double-row ball bearings.
SPECIFICATIONS
- Model Number 5940UAP125P50RAL7001
- Wheel Diameter 4″ dia.
- Wheel Width 3.25″ Wide Overall 0.785″ Wide Individually
- Load Capacity 220 lbs.
- Mounting Height 4.88″
- Brake 2 Position Directional Lock
- Top Plate 3.03″ x 2.64″ x 0.11″ thick
- Mount 4 holes on 2.42″ to 2.2″ x 2.03″ to 1.83″ centers
- Bolt Holes 0.33″ dia.
- Wheel Tread Material Polyurethane
- Wheel Tread Color Gray
- Caster Wheel Core Material Polyamide
- Caster Wheel Bearing Ball
- Shpg. 3 lbs.
