Description

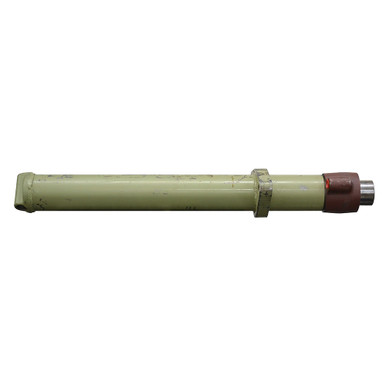

4″ x 35.25″ x 3.25″ SINGLE ACTING DISPLACEMENT MAST HYDRAULIC CYLINDER
Unused old inventory. CLARK EQUIP 346572, welded, single acting displacement, mast hydraulic cylinder. Two bolt flange mount. Work port has flow restrictor on retract cycle.
| SPECIFICATIONS |
- Single Acting
- Bore x Stroke 4″ x 35.25″
- Gland Retainer Externally threaded
- Pressure 2500 PSI max.
- Rod Dia. 3.25″
- Rod Thickness 3.25″
|
- Work Port SAE 12
- Breather Port 1/2″ NPT
- Retracted Length 13.5″
- Overall Length 45″
- Gland Face to Rod Pin Center 2″
- Shpg. 218 lbs.
|
| END MOUNTINGS |
|
|
- Base End Two bolt Mounting Flange
- Flange Thickness 1.5″
- Hole Spacing 9.375″ centers
- Bolt Holes 1.258″ Stepped down 1.016″
|
