Description

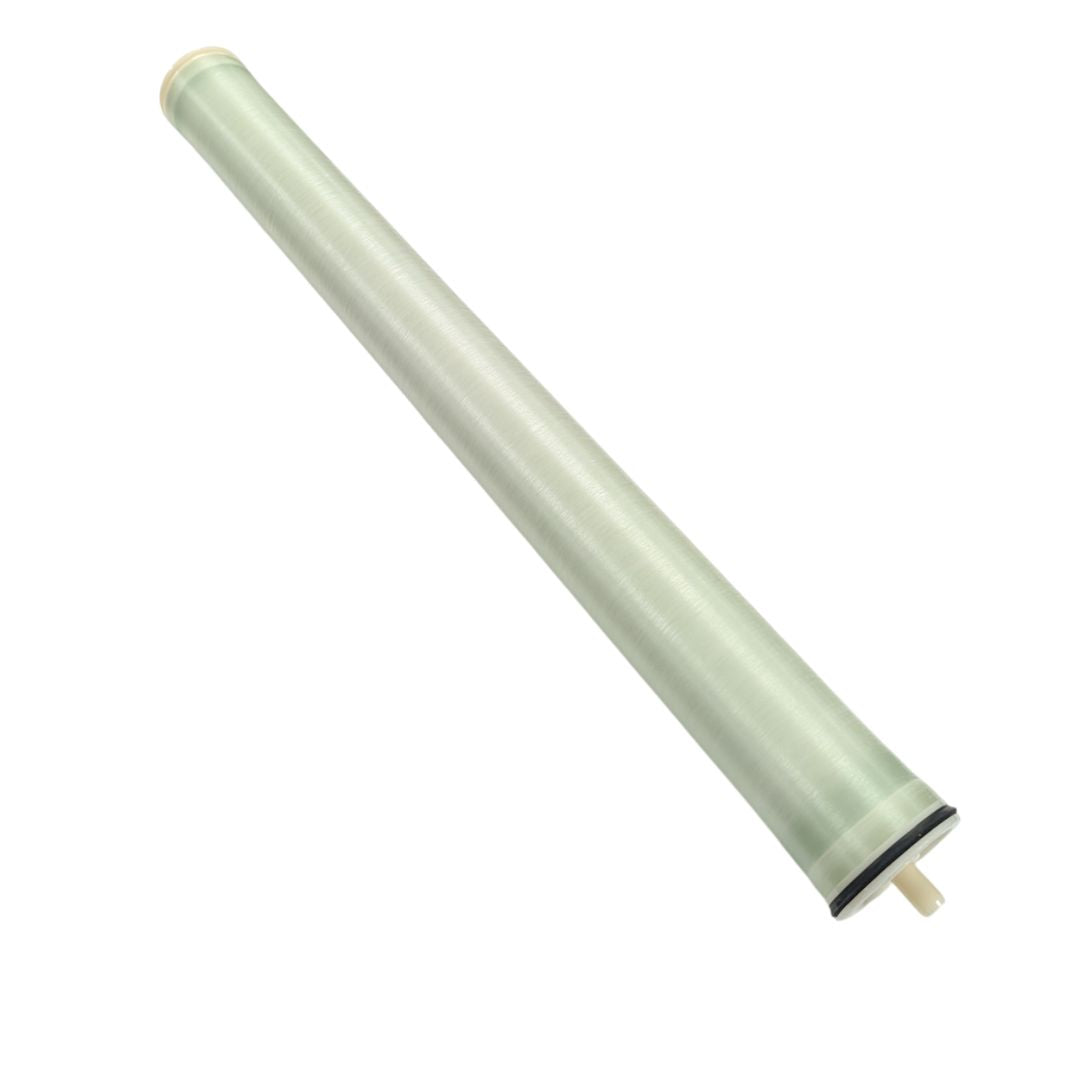

4 x 40 Inch Ultra Low Pressure RO Element – 2000 Gallons Per Day
The ULP (Ultra-Low Pressure) series is an excellent choice for high-quality water
production. It is widely used in new installations and system upgrades, particularly
when cost-effectiveness and productivity are key considerations. Excellence in automated manufacturing ensures that all membrane elements maintain consistent performance.
The ULP series membrane elements are manufactured without pre-chlorination,
ensuring high water output and salt rejection efficiency. This design also enables chemical cleaning across the widest pH tolerance range (1-13).
NSF/ANSI Standard 61 Certified
Base RO elements are manufactured using NSF/ANSI 61 certified materials by an accredited OEM.
Additionally, these membranes are manufactured without pre-chlorination, enabling chemical cleaning across a wide pH tolerance range (pH 1–13) and delivering consistent long-term rejection performance.
Specifications:
| Part Number | ULP31-4040 |
| Stable salt rejection rate(%) | 99.6 |
| Inlet grille thickness(mil) | 31 |
| Average flow GPD(m³/d) | 2000(7.6) |
| Membrane area ft²(m) | 100(9.3) |
| Max. Working pressure | 600psi(4.14MPa) |
| Max. Feed Water Flow | 3.6m³/h |
| Max. feed Water Temperature | .0-45°C |
| Maximum Feed Water SDI. | <5.0 |
| Residual chlorine concentration in feed water | <0.1mg/L |
| Maximum allowable pressure drop of a single membrane element | .15psi(0.1MPa) |
Cross References:
Our RO membranes serve as drop in replacements for industry standard models, including:
| Manufacturer | Part Numbers |
| CSM | RE4040-BLR |
| Filmtec | XLE-4040, LC LE PRO-4040 |
| Hydranautics | ESPA2-LD-4040, ESPA1-LD-4040 |
| Toray | TMH10A |
| Axeon Water Tech | HF5-4040 / ULP-4040 |
| LG Water Solutions | LG BW 4040 UES |
