Description

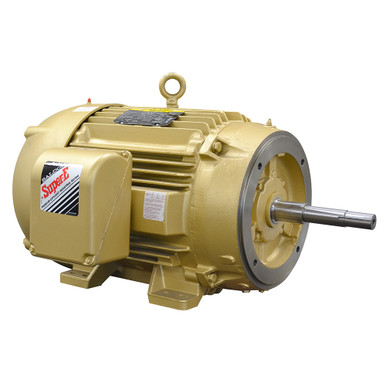

40 HP 1775 RPM 575 VOLT AC 3 PHASE BALDOR MOTOR
New, Baldor model M15316 motor.
SPECIFICATIONS
- Brand Baldor
- Model Number M15316
- Power 40 HP
- Voltage 575 Volt AC
- Phase 3
- Frequency 60 Hz
- Amperage 39 Amps
- Speed 1775 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearing Ball
- Enclosure TEFC
- Duty Continuous
- Frame 324JP
- Face Mount Four 5/8″-11 tapped holes on 11″ dia. bolt circle
- Rigid Base Mount Four 0.66″ dia. holes on 12-1/2″ x 10-1/2″ centers
- Shaft 1-3/8″ dia. x 3-1/2″ stepped down to 1-1/4″ dia. x 2-1/4″ w/ 1/4″ keyway and tapped for 1/2″-13 x 2-1/8″
- Size 33.375″ x 22.375″ x 16″
- Shpg. 597 lbs.
