5.11"(130mm) x 23"(584mm) x 3.15"(80mm) Double Acting Hydraulic Cylinder 9123539

5.11″(130mm) x 23″(584mm) x 3.15″(80mm) Double Acting Hydraulic Cylinder 9123539

Original price was: $349.95.Current price is: $69.99.

SKU: 904779 Category:

Description

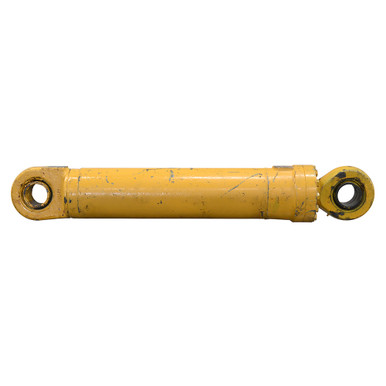

5.11″(130mm) x 23″(584mm) x 3.15″(80mm) DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 9123539.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke5.11″(130mm) x 23″(584mm)
  • Barrel Thickness 0.751″
  • Gland Retainer Bolt on gland
  • Pressure3000 PSI
  • Rod Dia. 3.15″(80mm)
  • Extend Port 4 bolt flange with M8-1.25″ drilled and tapped holes on 1.41″ centers and a 0.48″ port hole
  • Retract Port 4 bolt 3/4″ code 62 flange size 12
  • Retracted Length 40.25″
  • Gland Face to Rod Pin Center 4.5″
  • Shpg. 327 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.2″
  • Pin-Center-To-Tang-End 3.32″
  • Swivel Eye Width 3.375″
  • Pin Hole 2.76″(70mm)
  • Base End Tang
  • Width 3.11″
  • Pin-Center-To-Tang-End 3.42″
  • Swivel Eye Width 3.375″
  • Pin Hole 2.76″(70mm)
