Description

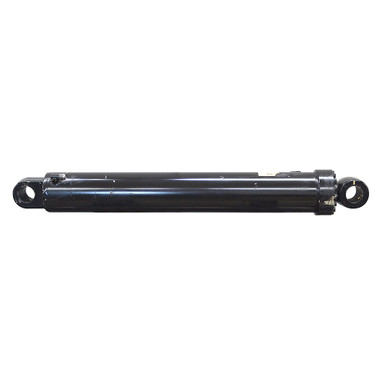

5.11″(130mm) x 33.5″(851mm) x 2.36″(60mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. TEREX double acting hydraulic cylinder. Numbers on cylinder 6501445000.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.11″(130mm) x 33.5″(851mm)
- Barrel Thickness 0.375″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia. 2.36″(60mm)
|
- Ports JIC 12
- Retracted Length 47″
- Gland Face to Rod Pin Center 3.125″
- Shpg. 236 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 3.96″
- Pin-Center-To-Tang-End 2.24″
- Pin Hole 2.36″(60mm)
|
- Base End Tang
- Width 3.97″
- Pin-Center-To-Tang-End 2.24″
- Pin Hole 2.36″(60mm)
|
