5.118" (130mm) x 50.5625" x 3.543" (90mm) Double Acting Hydraulic Cylinder

5.118″ (130mm) x 50.5625″ x 3.543″ (90mm) Double Acting Hydraulic Cylinder

Original price was: $599.95.Current price is: $119.99.

SKU: 904038 Category:

Description

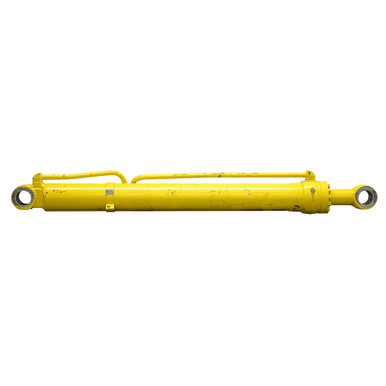

5.118″ (130mm) x 50.5625″ x 3.543″ (90mm) DOUBLE ACTING HYDRAULIC CYLINDER
New, welded cylinder with bolt-on gland cap.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 130mm (5.118″) x 50-9/16″
  • Barrel Thickness 12mm (0.472″)
  • Pressure 3000 PSI max.
  • Rod Dia. 90mm (3.543″)
  • Ports 3/4″ Four-Bolt Split Flange, Code 61
  • Retracted Length 73-9/16″
  • Shpg. 510 lbs.
END MOUNTINGS
  • Rod End Tang
  • Max Thickness 3-13/16″
  • Pin Center to Tang End 2-3/4″
  • Pin Hole 80mm (3.149″)
  • Base End Tang
  • Max Thickness 3-3/4″
  • Pin Center to Tang End 2-3/4″
  • Pin Hole 80mm (3.149″)
