Description

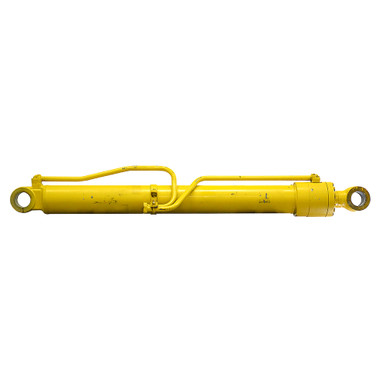

5.118″ (130mm) x 48.75″(1238.25mm) x 3.543″ (90mm) DOUBLE ACTING HYDRAULIC CYLINDER
New, KOMATSU model 6YW 1955 welded cylinder with bolt-on gland cap.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 130mm (5.118″) x 48.75(1238.25mm)
- Barrel Thickness 12mm (0.472″)
- Pressure 3000 PSI max.
- Rod Dia. 90mm (3.543″)
|
- Ports 3/4″ Four-Bolt Flange, Code 61
- Retracted Length 70-3/8″
- Shpg. 500 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Max Thickness 3-13/16″
- Pin Center to Tang End 2-3/4″
- Pin Hole 80mm (3.149″)
|
- Base End Tang
- Max Thickness 3-13/16″
- Pin Center to Tang End 2-7/8″
- Pin Hole 80mm (3.149″)
|
